More info

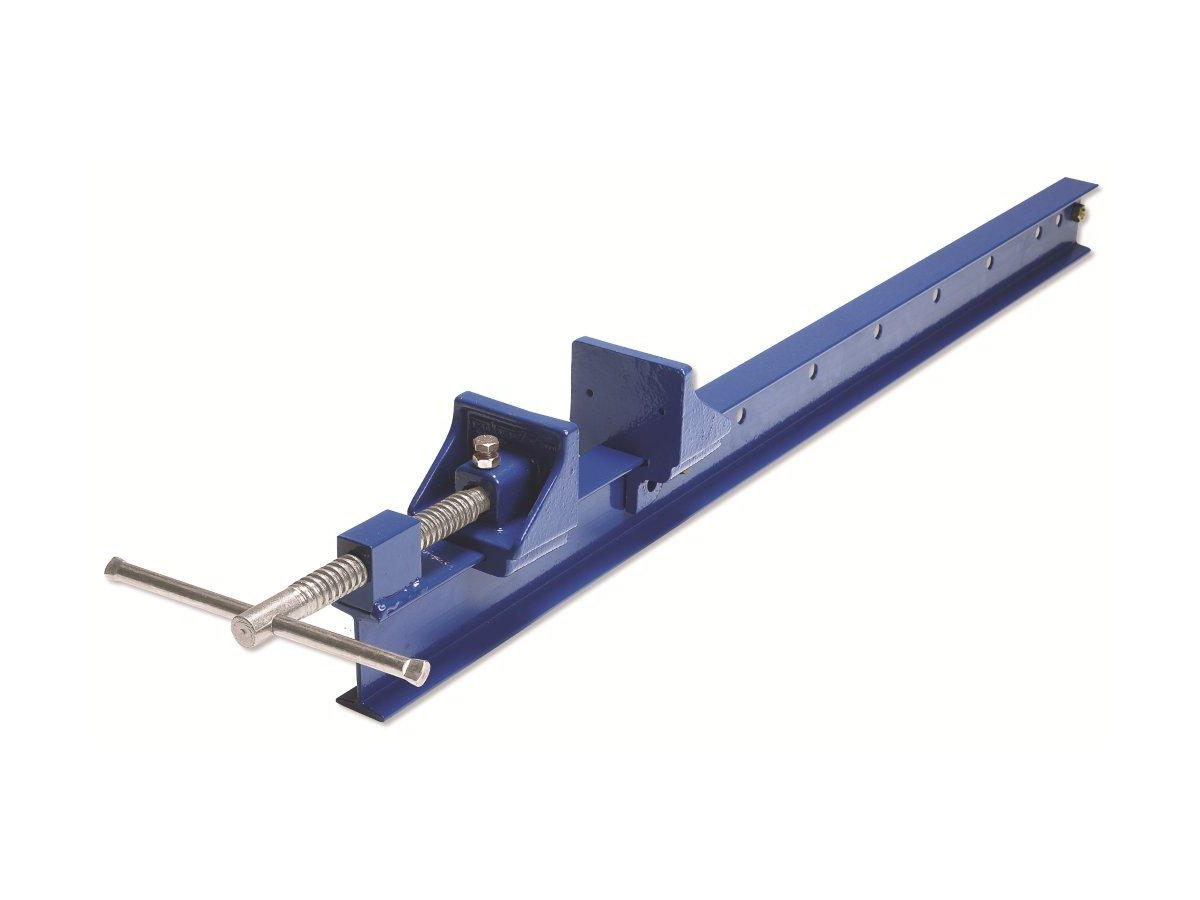

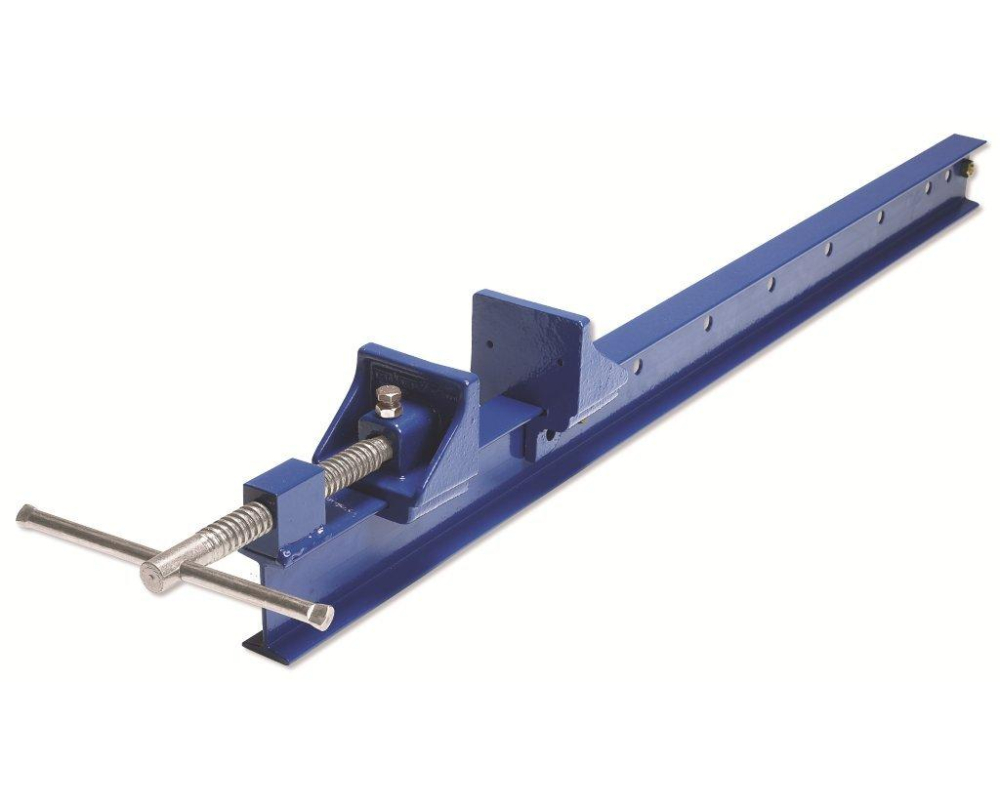

IPN section following UNE 36521 and EN 10025 rules.
Maximum pressure 15000N
Throat deep 8 cm
Highly resistant screw with trapezoidal thread
More information: accesories & documents
Maximum pressure 15000N
Throat deep 8 cm
Highly resistant screw with trapezoidal thread
More information: accesories & documents
Ref. | Description | Weight |
|---|---|---|
| 08100 | BAR-CLAMP 80-100 cm | 11.5000 Kg |
| 08125 | BAR-CLAMP 80-125 cm | 13.0000 Kg |
| 08150 | BAR-CLAMP 80-150 | 14.5000 Kg |
| 08175 | BAR-CLAMP 80-175 | 16.0000 Kg |
| 08200 | BAR-CLAMP 80-200 | 17.5000 Kg |
| 08225 | BAR-CLAMP 80-225 | 19.0000 Kg |
| 08250 | BAR-CLAMP 80-250 | 20.5000 Kg |
| 08275 | BAR-CLAMP 80-275 | 22.0000 Kg |
| 08300 | BAR-CLAMP 80-300 | 23.5000 Kg |
| 08350 | BAR-CLAMP 80-350 | 26.5000 Kg |
| 08400 | BAR-CLAMP 80-400 | 29.5000 Kg |
- CARACTERISTICAS TECNICAS VIGAS (694.27k)
- TECHNICAL SHEET BAR CLAMP (693.28k)
- CARACTERISTICAS T. VIGA (271.17k) CARACTERISTICAS T. VIGA
- TECHNICAL SHEET SASH-CLAMP.pdf (219.59k) TECHNICAL SHEET SASH-CLAMP
- FICHE T. DORMANT PIHER V 80 (217.42k) FICHE T. DORMANT PIHER V 80
